Guide rail vertical FV
| Bauwerke | Building, Other, Shaft, Tower |
|---|---|
| Befestigungsuntergründe | Concrete, Masonry, Other, Steel |
| Oberfläche des Untergrunds | Other, Plane (flat), Round (tube), Steel grid |
| Fallschutz | Guide rail |
| Material Fallschutz | Anodized aluminum, Stainless steel, Steel hot dipped galvanized |

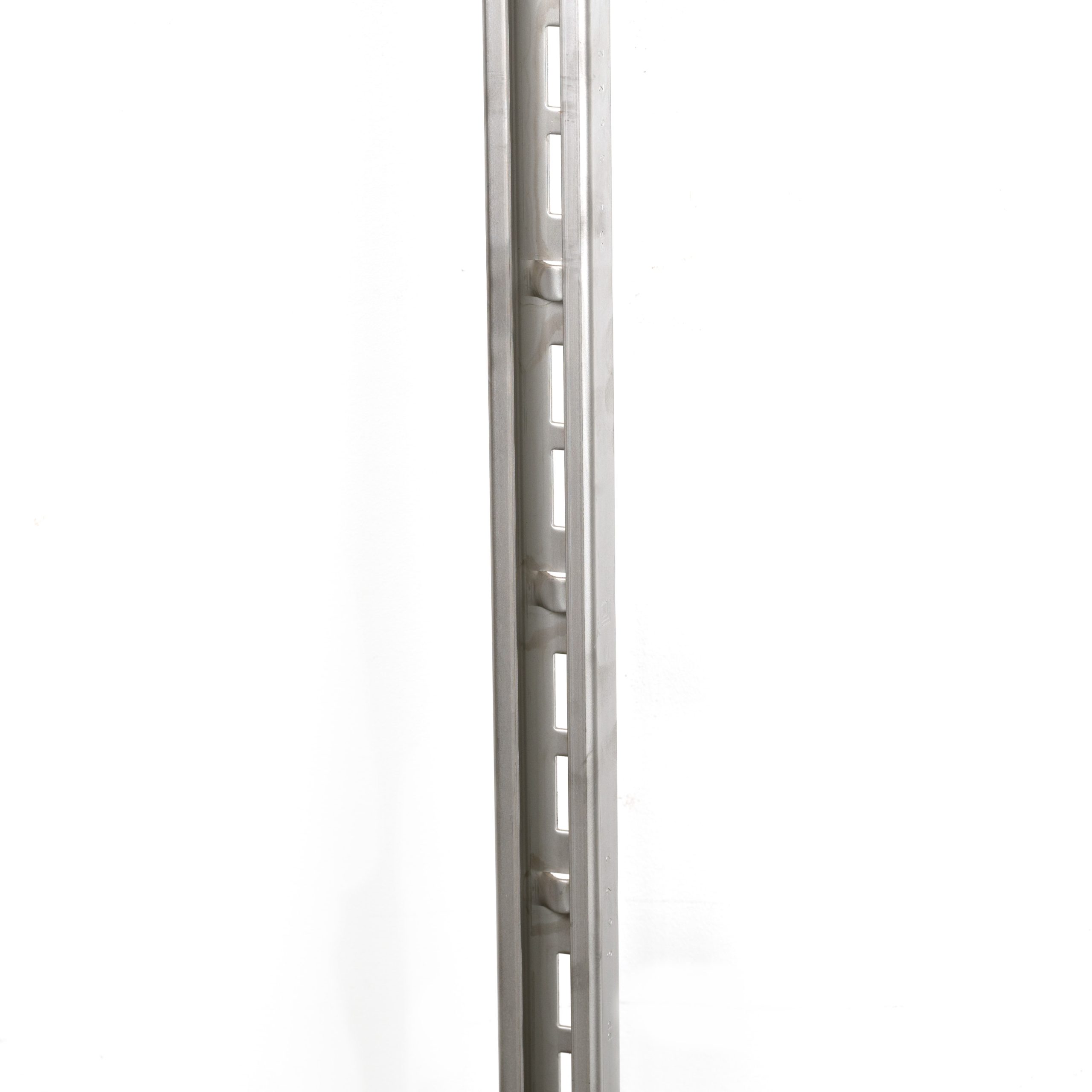

Guide rail incl. Profile connector with locking tabs and screws.
- Available in aluminum, steel and stainless steel
- Conforming arrester system type Twinstop®
3 variants for your requirements
Note on mounting distance: Max. 1400mm – empfolen 1120mm | max. 267mm from conductor end without / max. 1434mm with reinforcement profile

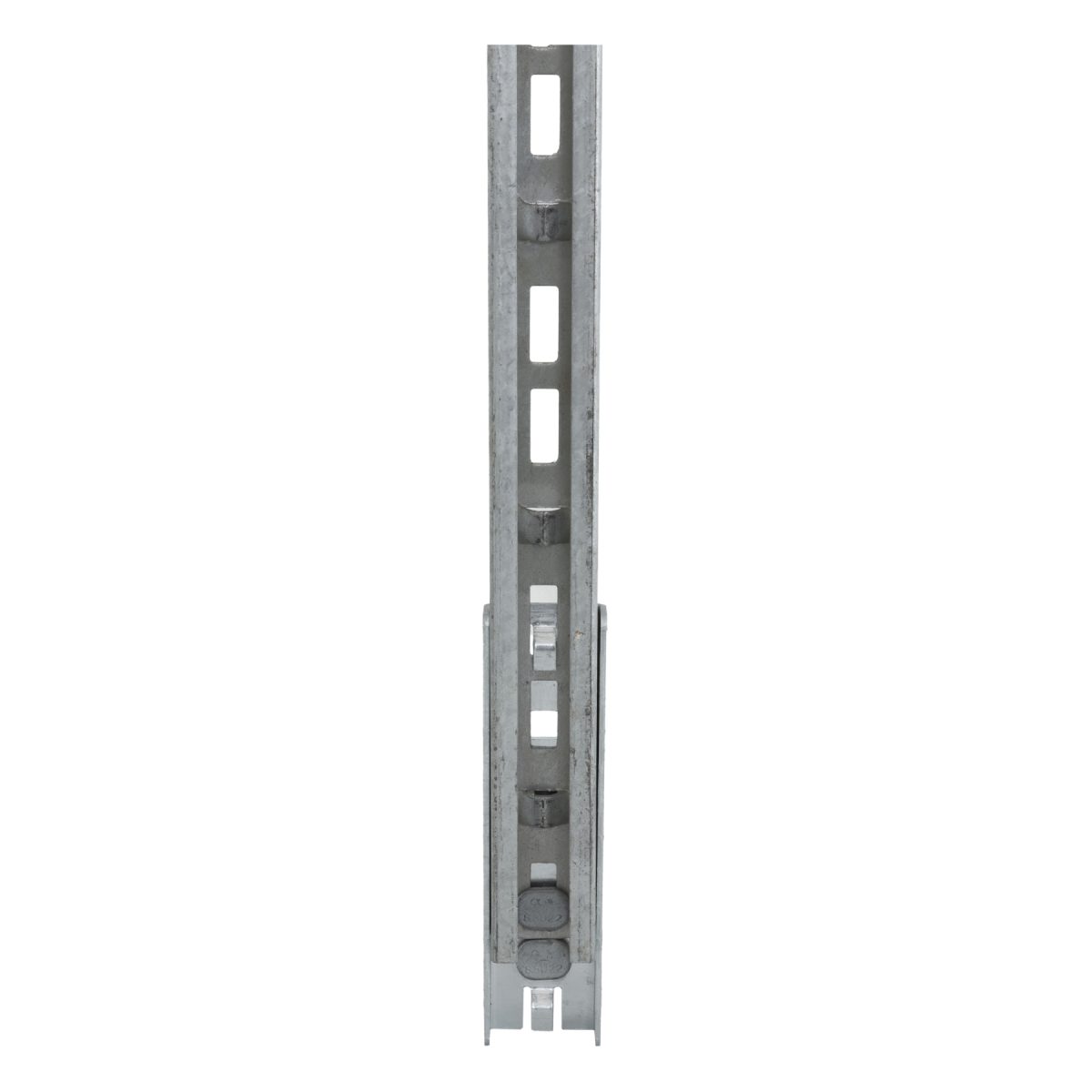

FV-ST
Steel St-tZn, hot-dip galvanized (1.0037)
- Guide rail: 50x32mm
- Catch distance: 140mm
- Segment length: 1120-4480mm in increments of 280mm; standard lengths: 2240mm, 2800mm, 4480mm
- Weight: 2,9kg/m
- Minimum bending radius of 1000mm possible for segments

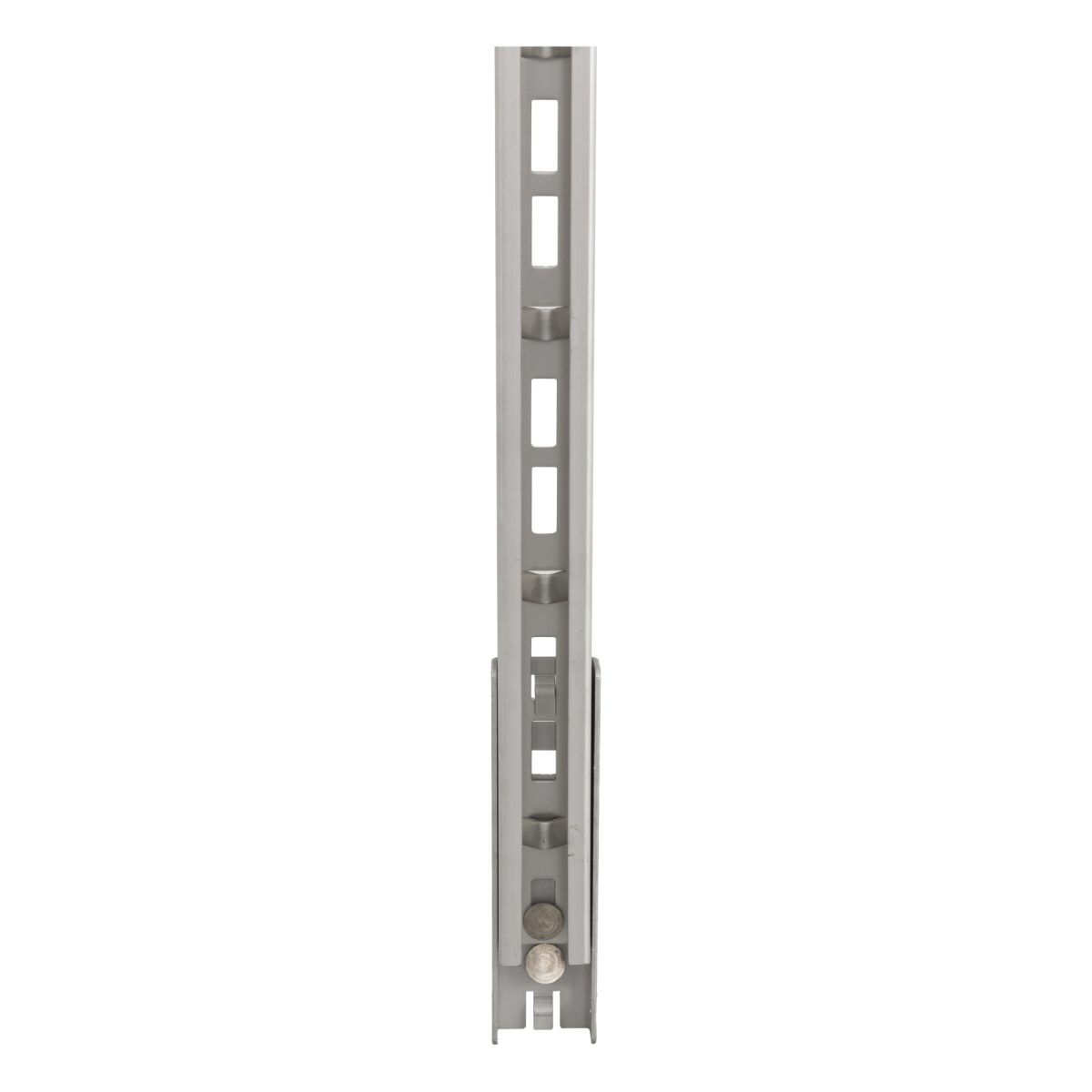

FV-VA
Stainless steel, pickled (1.4401/1.4571)
- Guide rail: 50x32mm
- Catch distance: 140mm
- Segment length: 1120-4480mm in increments of 280mm; standard lengths: 2240mm, 2800mm, 4480mm
- Weight: 2,9kg/m
- Minimum bending radius of 1000mm possible for segments

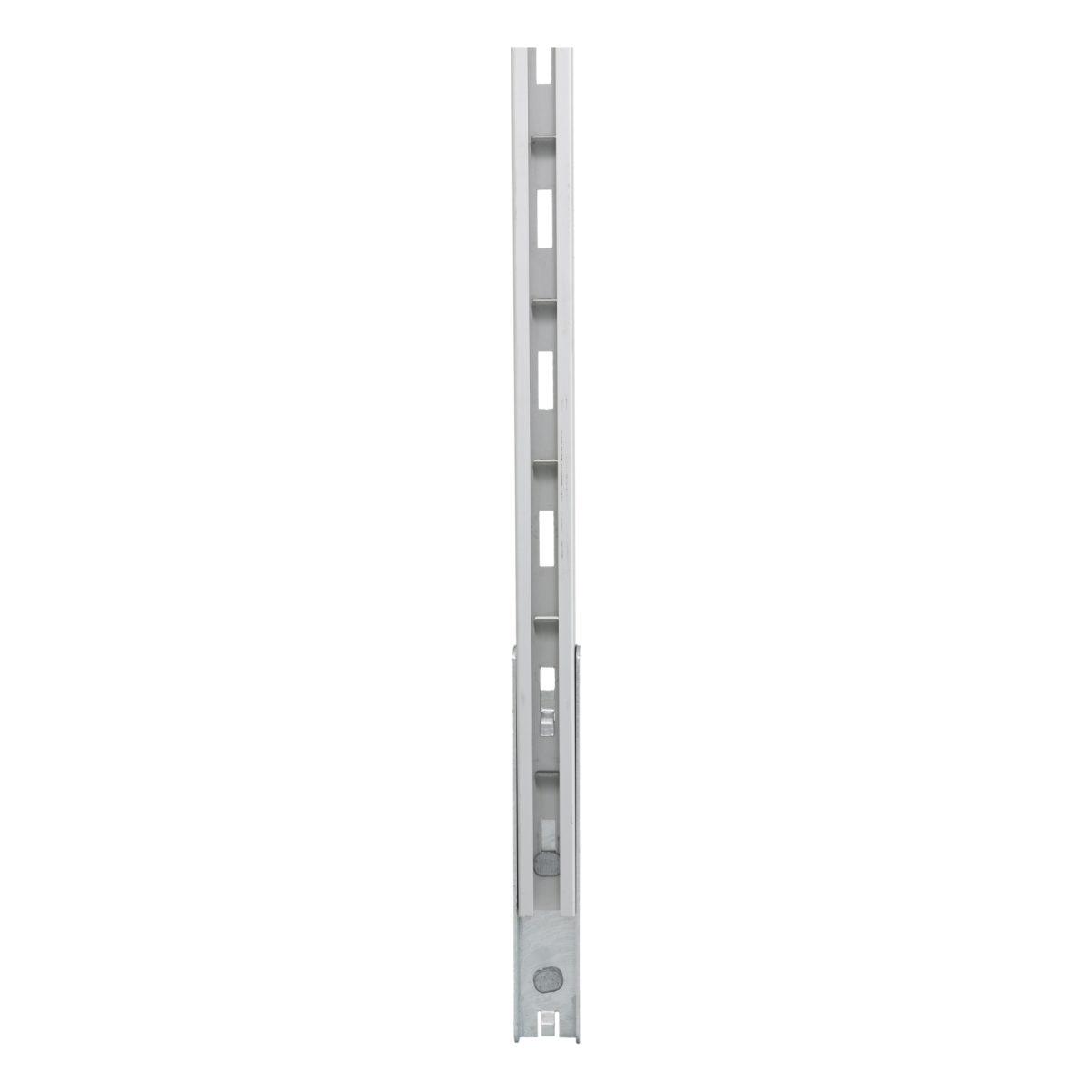

FV-AL
Aluminum, anodized (3.3206)
- Guide rail: 52x33mm
- Distance between catches: 150mm
- Segment length: 1120-4480mm in increments of 280mm; standard lengths: 2240mm, 2800mm, 4480mm
- Weight: 1,6kg/m
- Minimum bending radius of 2250mm possible for segments
FV bends
It is possible to adjust the riser path to the substructure.
The minimum bending radius is indicated in the boxes above.
All technically feasible bending types can be found in the data sheet.
These components you need for your fall protection system
- Guide rail or ladder with integrated guide rail
- Fastening element
- Profile connector
- Climbing lock bottom 12 kN
- Climbing lock top 12 kN
- Identification plate
- Fall arrester
